Product Specifications
| Model | Nominal Voltage | Nominal Capacity | Full Voltage | Max Continuous Current | Dimension (T*W*H) | Weight |
| 2S1P | 7.4V | 2000mAh | 8.4V | 4A | 19*37.5*68mm | 100g |

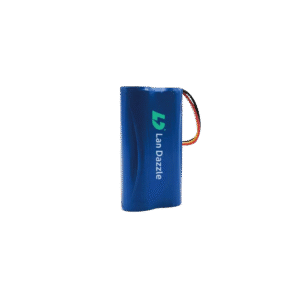

2S1P 18650 Battery Pack Features
- High-Voltage & High-Capacity Power
A 7.4V nominal voltage pack with a 2000mAh typical capacity, providing robust energy for a wide range of applications. - High Discharge Capability
Supports high continuous discharge currents up to 5A, with a peak discharge current of 6A, suitable for power-demanding devices. - Enhanced Safety & Protection System
Features a comprehensive protection circuit based on the S-8252AAH IC and 8810 MOSFETs, including:- Overcharge, over-discharge, and overcurrent protection (12–20A)
- Short-circuit protection with ultra-fast response (<350µs)
- Includes a PTC and 10K NTC (B=3435) for resettable overcurrent and temperature monitoring.
- Robust Mechanical & Environmental Design
- Built with two standard 18650 cells for reliability.
- Pre-attached 3-pin connector (A2509HFA-3P) with 60mm leads for easy integration.
- Passes stringent safety tests (crush, impact, drop, vibration, thermal shock).
- Wide Operating Range
- Charging: 0°C to 45°C
- Discharging: -20°C to 60°C
- Designed to perform reliably in various environmental conditions.
- Long Life Cycle & Quality Assurance
Custom 18650 Battery Pack Solutions
LanDazzle provides fully customized 18650 lithium battery packs to meet your unique application needs:
- Flexible Electrical Specs: Adjust capacity, discharge rate, and protection settings to match your device’s power profile.
- Custom Form Factor: Modify dimensions, lead length, or connector types for seamless fit and easy assembly.
- Advanced Protection Options: Integrate additional BMS functions, temperature sensors, or specific cutoff voltages for enhanced safety.
- Branding & Packaging: Private labeling, custom sleeves, and unique housing to align with your product design.
Whether you require high-discharge performance, extended cycle life, or extreme temperature operation, LanDazzle delivers bespoke lithium battery packs that ensure reliability and efficiency in the most demanding environments.
