Product Specifications
| Model | Nominal Voltage | Nominal Capacity | Full Voltage | Dimension (T*W*H) | Weight |
| 2S2P | 7.4V | 5000mAh | 8.4V | 38*39.5*68mm | 210g |

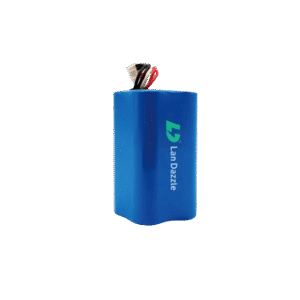

2S2P 18650 Battery Pack Features
- High-Capacity Power: 7.4V nominal voltage with a large 5000mAh capacity, built with a reliable 2P2S configuration of 18650 cells.
- High Discharge Current: Supports a high continuous discharge current of 5A, suitable for powering demanding applications.
- Robust Protection System: Features the S-8252AAG protection IC with comprehensive safeguards against overcharge, over-discharge, and high overcurrent (20–32A).
- Enhanced Safety & Durability: Includes a PTC and an NTC thermistor. Passes stringent safety tests including crush, impact, drop, and thermal shock.
- Standard Connector & Wiring: Equipped with a 150mm wire and a standard XH2.5-5P connector for easy integration.
- Long Service Life: Rated for ≥500 cycles to 80% initial capacity, ensuring long-term reliability.
Custom 18650 Battery Pack Solutions
LanDazzle provides fully customized 18650 lithium battery packs to meet your unique application needs:
- Flexible Electrical Specs: Adjust capacity, discharge rate, and protection settings to match your device’s power profile.
- Custom Form Factor: Modify dimensions, lead length, or connector types for seamless fit and easy assembly.
- Advanced Protection Options: Integrate additional BMS functions, temperature sensors, or specific cutoff voltages for enhanced safety.
- Branding & Packaging: Private labeling, custom sleeves, and unique housing to align with your product design.
Whether you require high-discharge performance, extended cycle life, or extreme temperature operation, LanDazzle delivers bespoke lithium battery packs that ensure reliability and efficiency in the most demanding environments.
