Product Specifications

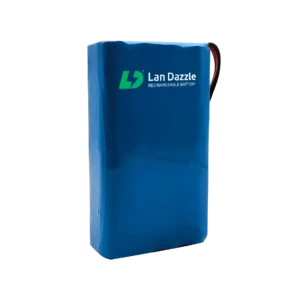

4S4P 18650 Battery Pack Features

• High-Capacity Power: A large 10400mAh capacity at 14.4V, built with a robust 4S4P configuration of 18650 cells for extended runtime.
• High-Power Output: Supports a high continuous discharge current of 20A and a peak current of 25A, suitable for demanding applications.
• Advanced Dual Protection: Features a sophisticated protection system with dual-level overcharge protection, cell balancing, fuses (15A), and comprehensive temperature protection.
• Enhanced Safety & Reliability: Passes all standard safety tests (overcharge, short-circuit, crush, impact) and boasts a very low swelling rate of <0.1%.

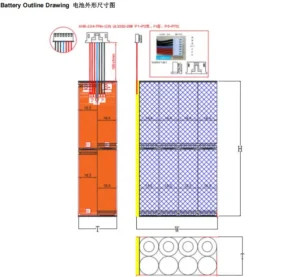

• Ready-to-Use Design: Equipped with a standard XHB2.54-7P connector and 100mm output wires for easy integration.
• Long Service Life: Rated for ≥500 cycles to 80% initial capacity, ensuring long-term durability and performance.

Custom 18650 Battery Pack Solutions

LanDazzle provides fully customized 18650 lithium battery packs to meet your unique application needs:

• Flexible Electrical Specs: Adjust capacity, discharge rate, and protection settings to match your device’s power profile.
• Custom Form Factor: Modify dimensions, lead length, or connector types for seamless fit and easy assembly.
• Advanced Protection Options: Integrate additional BMS functions, temperature sensors, or specific cutoff voltages for enhanced safety.
• Branding & Packaging: Private labeling, custom sleeves, and unique housing to align with your product design.

Whether you require high-discharge performance, extended cycle life, or extreme temperature operation, LanDazzle delivers bespoke lithium battery packs that ensure reliability and efficiency in the most demanding environments.
