21700 battery pack 14s6p
21700 Battery Pack 24S6P for drone
21700 Battery Pack 24S6P for drone
21700 battery pack 14s6p
21700 Battery Pack 24S6P for drone
21700 Battery Pack 24S6P for drone
  • |
  • 21700 24S6P

21700 24S6P

  •     Specification

Capacity: 30000mAh
Voltage: 86.4V
Weight: 10.45kg
Size(W*L*H): 129*173*220(mm)

  • |
  • Our Advantages

⭕ High Rate

⭕ Full Tab

⭕ Long Battery Life

⭕ Fast Charging

⭕ Wide-temperature Performance

⭕ Customized Option

| Products details

Product Specifications

ModelNominal Voltage （V）Nominal Capacity （mAh）Discharge Rate （C）Connector TypeDimension (W*L*H) (mm)Weight(kg)
24S6P86.43000036AS150/XH2.54-13P129*173*22010.45

21700 Battery Pack 24S6P Features

  • Extreme High Voltage System: 86.4V nominal voltage (100.8V fully charged) engineered for heavy-duty industrial equipment, large electric vehicles, and high-power stationary storage applications.
  • Massive Energy Reserve: 30000mAh typical capacity delivers exceptional endurance for the most demanding extended runtime requirements.
  • Extreme Power Delivery: Supports a massive 750A maximum continuous discharge current for industrial-grade high-power applications.
  • High-Current Charging: Accepts up to a 60A max charge current, enabling practical recharge times for its enormous capacity.
  • Industrial Connector Standard: Features an AS150 output connector, rated for extreme current and voltage, and an XH2.54-15P balance lead for the 24S configuration.
  • Optimized Performance: ≤40mΩ pack impedance ensures efficient power delivery in ultra-high-voltage systems.
  • Comprehensive Safety Certification: Engineered to meet and exceed GB, IEC, and UL safety standards, with full protection against all common failure modes.

LanDazzle 21700 Battery Pack Series

ModelNominal VoltageNominal CapacityDischarge RateConnector TypeDimension (W*L*H)Weight
6S1P21.6V5000mAh36CXT60/XH2.54-7P45*68*80mm0.47kg
6S2P21.6V10000mAh36CXT60/XH2.54-7P52*68*150mm0.9kg
6S3P21.6V15000mAh36CXT90/XH2.54-7P66*131*80mm1.33kg
6S3P21.6V15000mAh36CXT90/XH2.54-7P66*66*210mm1.33kg
6S4P21.6V20000mAh36CXT90/XH2.54-9P87*131*80mm1.75kg
8S1P28.8V5000mAh36CXT90/XH2.54-9P45*89*80mm0.63kg
8S2P28.8V10000mAh36CXT90/XH2.54-9P45*173*80mm1.21kg
8S3P28.8V15000mAh36CXT90/XH2.54-9P66*173*80mm1.75kg
8S4P28.8V20000mAh36CXT90/XH2.54-9P87*173*80mm2.34kg
12S4P43.2V20000mAh36CAS150/XH2.54-13P87*131*150mm3.44kg
14S6P50.4V30000mAh36CAS150/XH2.54-13P129*152*150mm5.97kg
18S6P64.8V30000mAh36CAS150/XH2.54-13P129*194*150mm7.84kg

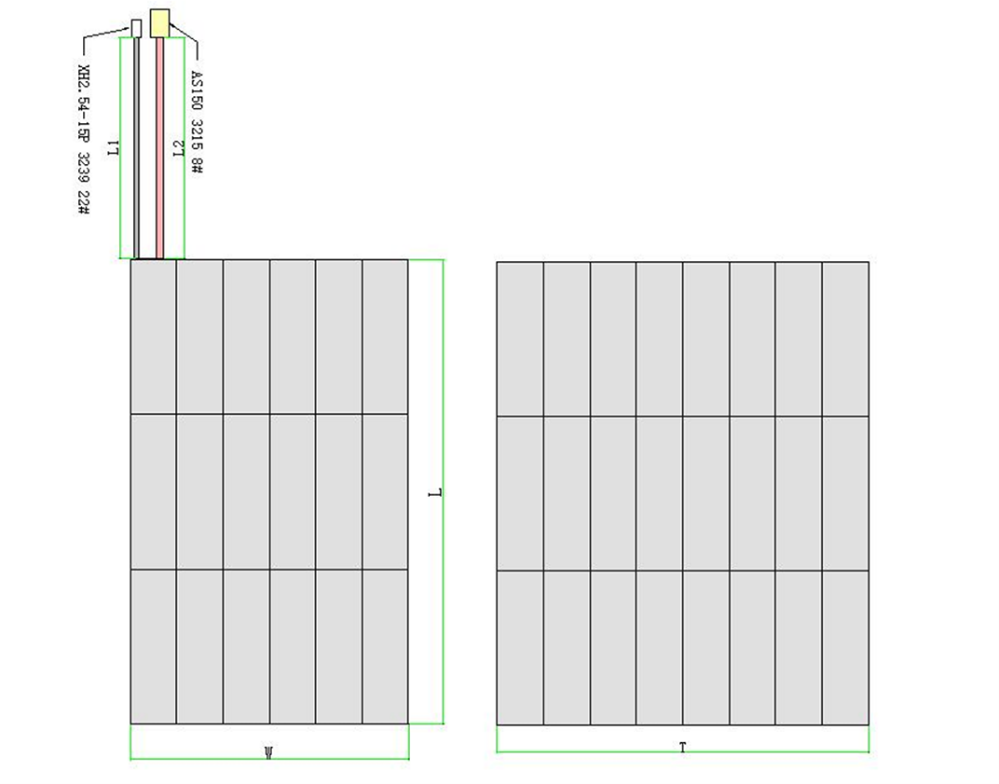

| Demensional

21700 24s6p battery pack dimension

| Applications
AGV battery

AGV

Automated Guided Vehicles (AGVs) require reliable batteries with long cycle life, fast charging capability, and high safety standards. LanDazzle provides lithium battery solutions for AGVs, delivering high energy density, stable performance, and durable power support. From warehouse logistics to smart manufacturing and automated transport, our AGV batteries ensure efficiency, reduce downtime, and optimize operational costs.

Read more >>
flashlight battery

Flashlight

LanDazzle offers the 26105 rechargeable C battery with a powerful 11000mAh capacity, engineered for high-performance flashlights. Designed to deliver long-lasting runtime and stable output, this battery ensures reliable power for outdoor adventures, emergency lighting, and professional applications.

Read more >>
power tools battery

Power Tools

Power tools demand high-performance, durable, and safe batteries to deliver consistent power for demanding tasks. At LanDazzle, we offer battery solutions engineered for maximum efficiency, long runtime, and seamless integration with your power tools.

Read more >>

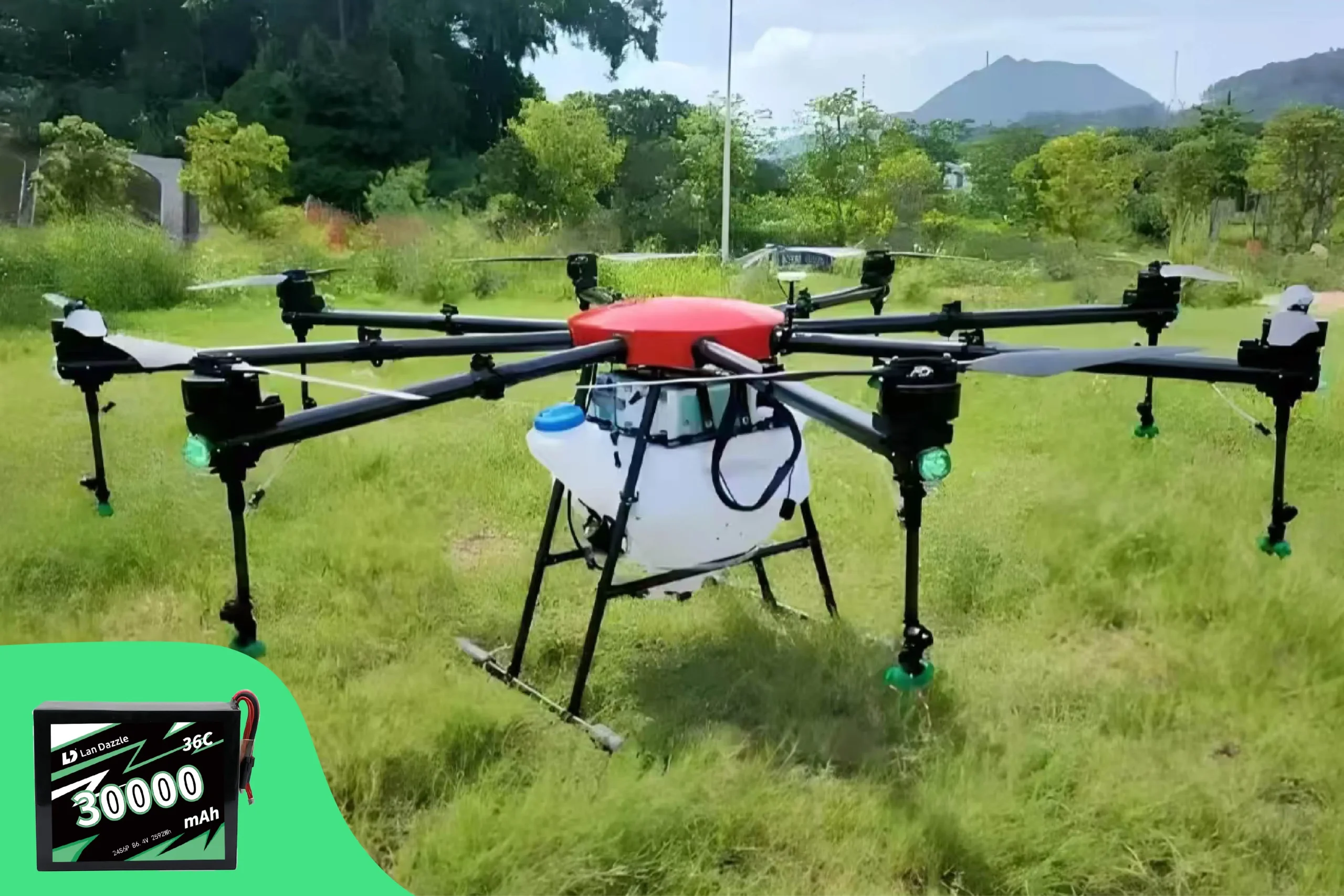

agricultural drone battery

Agricultural Drone

Agricultural drones require batteries that deliver long flight endurance, stable power output, and durability to handle heavy payloads and extended field operations. LanDazzle provides high performance battery pack designed to meet the specific demands of agricultural drone applications.

Read more >>
lawn mower battery

Lawn Mower

LanDazzle offers high-performance lithium batteries designed specifically for lawn mowers. Our batteries provide longer runtime, consistent power output, and enhanced durability, ensuring your electric lawn mowers operate efficiently and reliably. With customizable options for voltage, capacity, and form factor, LanDazzle delivers battery solutions tailored to meet the demands of both residential and commercial lawn care equipment.

Read more >>
fpv drone battery

FPV Drone

FPV drones demand batteries with high discharge rates, lightweight design, and reliable performance to support long flight times and powerful maneuvers. LanDazzle offer battery solutions tailored to meet the exact requirements of FPV drone applications.

Read more >>
| Downloads

Product Files:

File Name Format Size Download
21700 24S6P    PDF 431KB Download
  • |
