LD21700 8S2P 10000mAh 28.8v

LD21700 8S2P 10000mAh 28.8v

Beschreibung
Spezifikationen

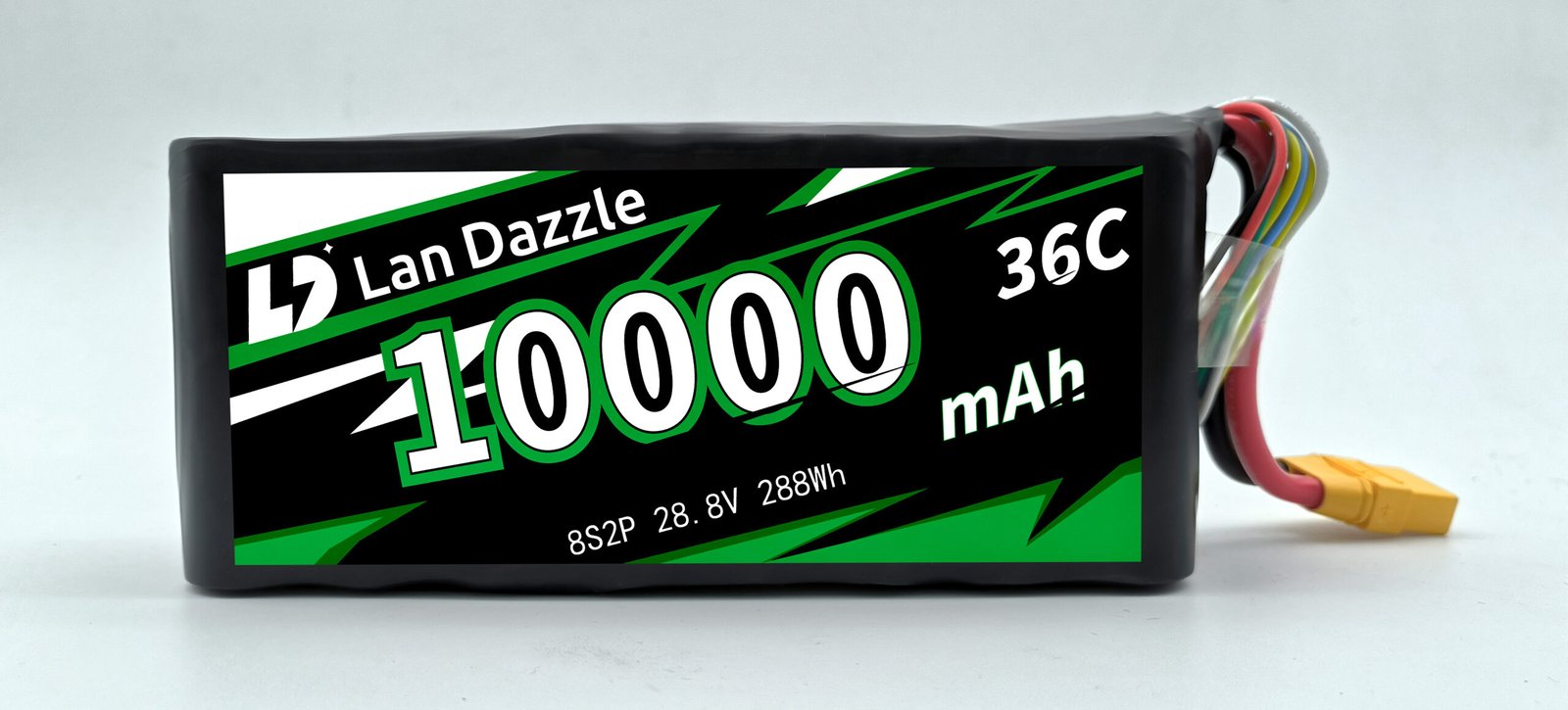

Lan Dazzle 21700 8S2P Lithium-Ionen-Akku

Unlock higher capacity and robust voltage for demanding applications with Lan Dazzle’s 21700 8S2P lithium-ion battery pack. Featuring eight cells in series and two in parallel, this pack delivers a nominal 28.8 V at 10000mAh in a compact, service-friendly design. Perfect for high-voltage drones, robotics, electric tools, and industrial electronics, it balances power density, runtime, and safety.

Hauptmerkmale

Elevated Capacity & Voltage
Produces 10000mAh of capacity at 28.8 V nominal (8 × 3.6 V), providing extended operation without increasing pack footprint.
Strong Discharge Performance
Supports continuous currents up to 250A, with peak pulses up to 360A—ideal for surge-demand motors and rapid-response systems.
Efficient Thermal Management
Standard flame-retardant PVC wrap; optional aluminum casing or phase-change thermal interface materials available for harsh environments.
Custom Integration Options
Standard XT60 connector; upgrade to XT90, or custom harnesses. Pack shape, mounting points, and wiring tailored to your enclosure.
Globale Sicherheitszertifizierungen
Fully compliant with UN38.3, IEC 62133, and RoHS standards for international transport and operation.

Technical Specifications

Spezifikation	Einzelheiten
Zellentyp	21700 Lithium-Ion (3.6 V nominal, 5mAh per cell)
Konfiguration	8S2P (8 series × 2 parallel)
Nennspannung	28.8 V
Nominale Kapazität	10000mAh
Betriebstemperatur	-20 °C bis +60 °C (Entladung); 0 °C bis +45 °C (Ladung)
Abmessungen	42 mm × 168mm × 70mm (customizable)
Gewicht	~1.2 kg
Steckverbinder	XT60 (standard); XT90; custom options
Zertifizierungen	UN38.3, IEC 62133, RoHS

Anwendungen

Professional & Industrial Drones: Higher capacity for extended missions and heavier payloads.
Electric Tools & Equipment: Consistent high-voltage power for 24V–30V cordless tools.
Autonomous Robotics: Stable supply for high-torque motors and control electronics.
Portable Industrial Electronics: Reliable energy for field data-loggers, sensors, and communication hubs.
Backup Power Systems: Compact, transportable UPS for critical instrumentation.

Warum Lan Dazzle wählen?

Fully Customizable
From cell chemistry and BMS firmware to pack dimensions and connectors, every detail is tailored to your exact requirements.
Erstklassige Qualität
In-house factory, rigorous QC testing, and certified Grade A cells guarantee reliability and safety.
Scalable Manufacturing
Prototype through high-volume production—our flexible processes meet your timelines and budget.
Umfassende Unterstützung
Design consultation, certification assistance, and responsive after-sales service ensure smooth integration and lifecycle support.
