To many people, a smart card is just a card with a chip. But as applications keep improving—such as fingerprint payment cards, dynamic password cards, and smart cards with small screens—their power requirements have become completely different.
The customer we are working with now is developing a smart card with extra functional modules. The card thickness is limited by industry standards (similar to a regular bank card), but it needs to include chips, sensors, and small functional modules inside. This makes the battery the hardest part of the whole project.
The customer’s goal was clear from the start:
Ultra thin battery provides stable power, with a reasonable service life, while keeping the total thickness under 1 mm.
It sounds like just “making it thinner,” but in reality, it is much more difficult than people think.
The question was not “Can we make it?” but “Will it work?”
Before coming to us, the customer had already tried several ultra-thin battery solutions on the market. However, they faced major problems:
- Although the batteries were thin, their capacity was clearly too low, resulting in very short working time.
- The batteries easily lost performance or even failed when the card was bent or during daily use.
- Some samples swelled up or performed unstably after being stored for a period of time.
- Poor consistency made mass production difficult, with unstable yield.
In other words, it wasn’t that there were no batteries at all—it was that there were no usable batteries.
This is a common problem for many ultra-thin battery projects:
Samples can be made in the lab, but stable mass production is very hard to achieve.
Core Challenge: 1mm Is More Than Just a Size Issue
In this project, the customer gave us a strict requirement:
Battery thickness must be under 1 mm
For battery engineering, this is not just about “making it smaller.” It means the entire system must be redesigned under tight constraints.
During our evaluation, we identified four key challenges:
1. Material Stability in an Ultra-Thin Structure
When a battery is compressed to 1 mm or thinner, its internal layers — cathode, anode, and electrolyte — become extremely thin (on the micrometer level).
At this scale:
- Material uniformity must be extremely high
- Local stress concentration is very likely to happen
- Electrodes are more prone to micro-cracks during production or use
These issues directly reduce battery capacity, increase internal resistance, and even create safety risks.
2. Much Higher Packaging Difficulty
Thicker batteries have some room for error, but ultra-thin batteries have almost none.
- They are highly sensitive to moisture and oxygen
- Even tiny defects in the packaging can cause fast performance decay
- At the same time, packaging cannot add extra thickness
In short: packaging must be both ultra-thin and fully sealed — two conflicting goals.
3. Extremely Narrow Processing Window
Small variations are acceptable in normal battery production, but not in ultra-thin batteries:
- Slight mistakes in coating thickness affect the whole structure
- Uneven lamination causes abnormal local performance
- Production yield drops easily
This demands much higher stability in the manufacturing process.
4. Balancing Capacity and Lifespan
Less thickness means:
Less active material → lower capacity
But the customer also needs:
- Long enough working time
- Good cycle life or service life
This creates a typical conflict:
The thinner the battery, the harder it is to guarantee performance.
Solution: Not Just “Making It Thinner” — But a Complete Redesign
Instead of simply squeezing the battery to be thinner, we optimized the design from a system-level perspective.
In short, what we achieved was:
Maximizing effective energy density within the limited space.
We focused on these key improvements:
1. Optimized Electrode Formula & Structure
We specially adjusted the electrode materials, so they remain stable even when made ultra-thin:
- Good structural stability
- Low internal resistance
- Satisfactory capacity
We also optimized the electrode design to reduce stress concentration.
2. Precision Coating & Lamination Control
For the ultra-thin structure, we strengthened control over core manufacturing processes:
- Improved coating uniformity
- Ensured consistent thickness of each layer
- Optimized lamination parameters to avoid uneven areas
This step has a huge impact on final production yield.
3. High‑Barrier Packaging Solution
For packaging, we used a combination of high-barrier materials and improved processes:
- Enhanced airtightness
- Lowered risk of moisture and oxygen penetration
- Kept packaging thickness under control
This ensures stable performance during long-term storage and use.
4. Structure Matching for Real‑World Use
A smart card is not used in a static environment — it is often bent, pressed, and handled daily.
So we also designed for:
- Basic flexibility
- Resistance to bending
- Good compatibility with the customer’s device structure
This is critical for real‑world performance.

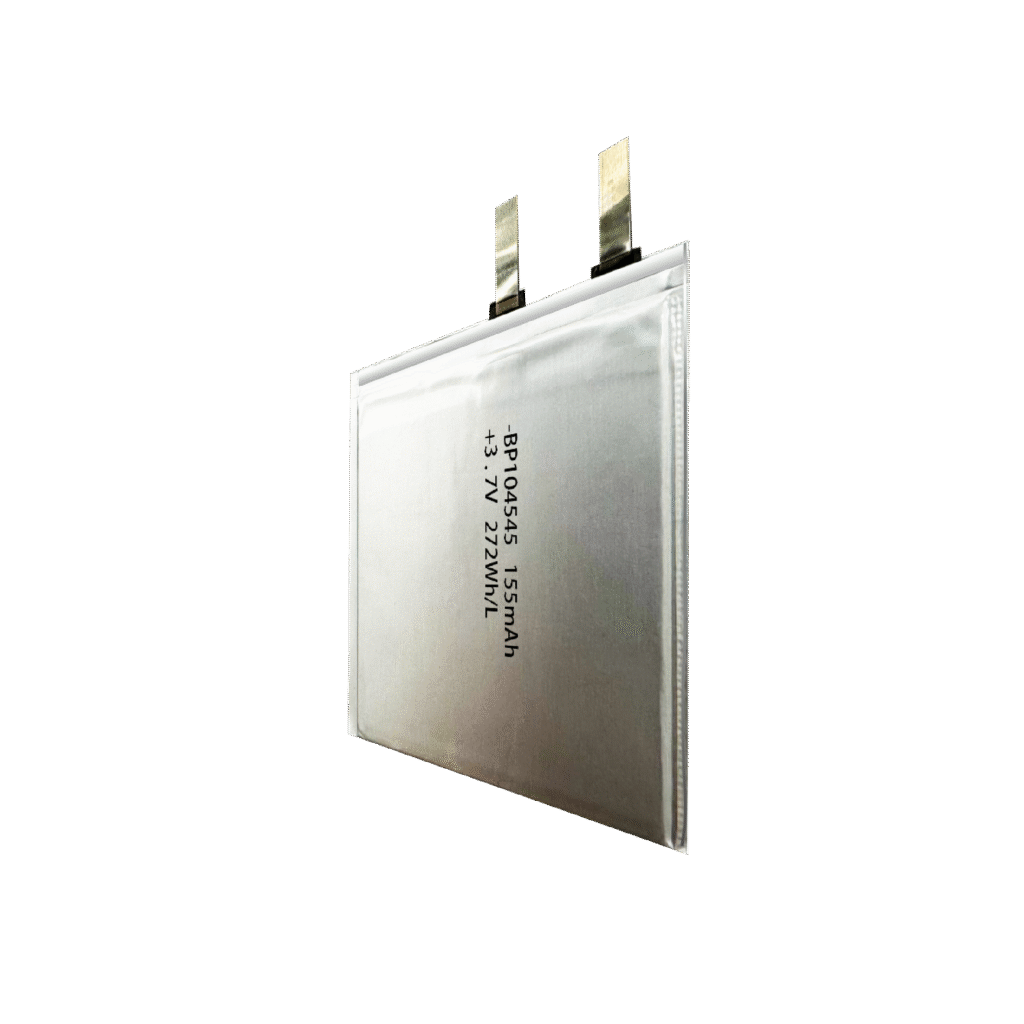

Final Results of Our Ultra Thin Battery
After multiple rounds of prototyping and structural optimization, this ultra-thin battery project achieved more than just a size breakthrough — it delivered a fully implementable solution.
The final results:
- Battery thickness stably controlled under 1 mm
- Provides stable, continuous power for functional modules inside the smart card
- Maintains reliable performance under daily use (including minor bending)
- No obvious swelling or abnormal behavior during storage and actual use
- Meets consistency and yield requirements for mass production
More importantly, this solution has been fully validated in the customer’s real product and achieved expected performance, rather than remaining a lab sample or one-off prototype.
Looking back on the project, we reached clear engineering conclusions:
Ultra-thin batteries are never just about “making them thinner.” They are a systematic challenge.
Success depends on coordination across many areas:
- Whether the material system is suitable for ultra-thin structures
- Whether the battery structure is reasonably designed
- Whether manufacturing processes support stable production
- Whether packaging is sufficiently reliable
- Whether the battery truly matches the end application scenario
A weakness in any single area will eventually show up in real-world use.
This project also made one thing very clear:
Many ultra-thin battery projects fail not because they cannot reach an extreme thickness, but because they cannot stay stable over long-term use.
For customers, more important than the “thinnest” specification are:
- Can the battery work reliably in real environments over time?
- Is stable mass production achievable?
- Is consistency maintained between batches?
In short, a truly valuable ultra-thin battery is not one that only looks thin.
It is a solution that still works reliably, even under extreme space constraints.
Conclusion
The real value of this project is not just a 1 mm ultra-thin battery.
More importantly, we helped the customer achieve a practical power solution under extreme space constraints.
For many similar applications, we increasingly follow this philosophy:
👉 The goal of battery design is not “maximum parameters,” but the best overall system solution.
If you are working on:
- Smart cards
- Wearable devices
- Ultra-thin electronic products
and are facing challenges such as limited space or difficulty finding a suitable battery, you should consider the battery as part of the system from the very beginning, rather than trying to “fit a battery in” at the end.
This often leads to a completely different outcome.
